COMPANIES CURRENTLY USING PLASTICS

PLASTICIET - Netherlands

https://www.plasticiet.com/materials




ECOBIRDY - Antwerp, Belgium

https://www.ecobirdy.com/




STUDIO PLASTPLAN - Reykjavík, Iceland

https://www.plastplan.is/


Smile Plastics - Wales

https://smile-plastics.com/

NEEDED EQUIPMENT

https://bazar.preciousplastic.com/machines/sheetpress/sheet-press-fully-built/sheet-press-machine-1.5x1.5-meter-heavy-duty-and-factory-made-clone

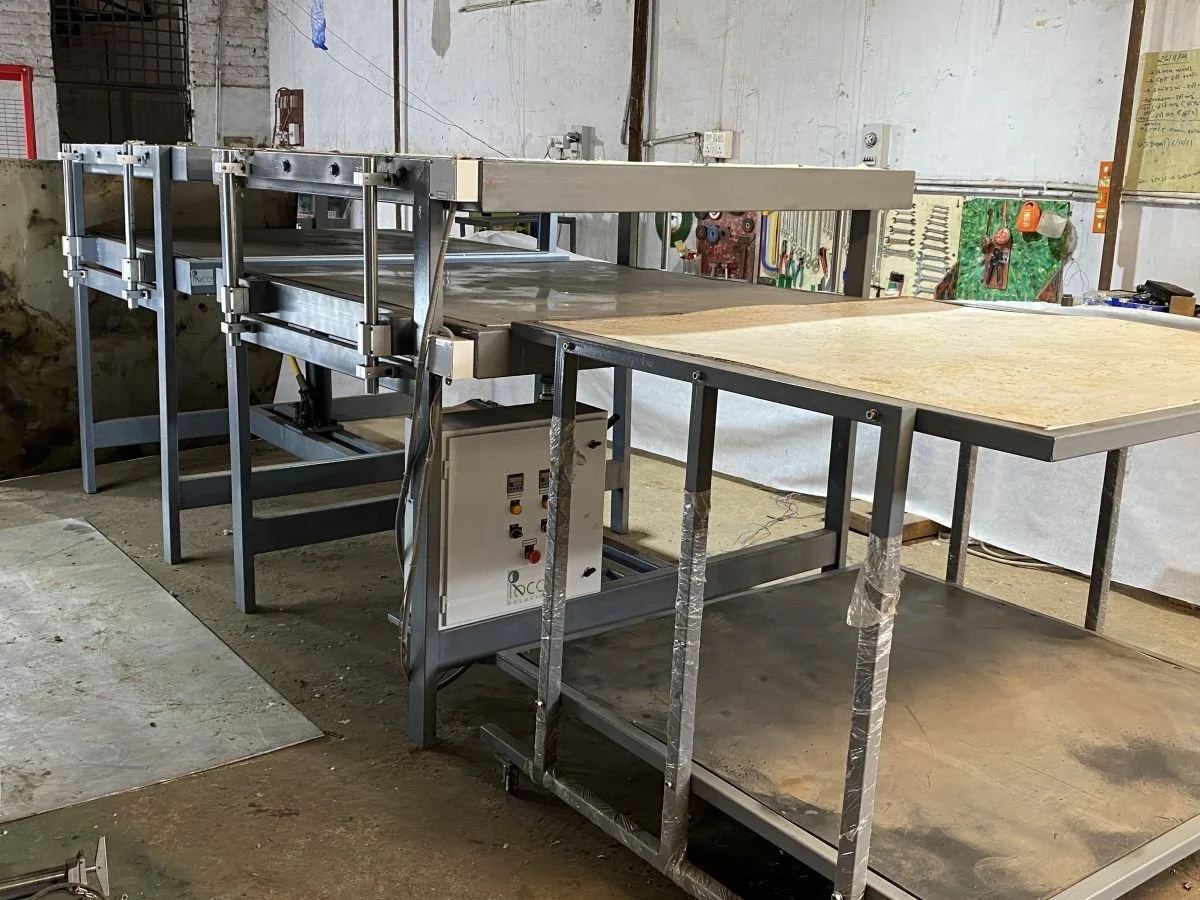

Automatic 1.5x1.5 Meter Sheet Press System

We provide installation, technical support, and virtual training for your new machine. We also offer an operating manual, how-to guides, and two years of free virtual maintenance to keep your equipment running smoothly.

This machine can make multiple sheets out of HDPE / PP / PS / LDPE / ABS waste.

Each sheet can recycle from 14-50 kgs of plastic waste.

MAIN DESIGN COMPONENTS:

  1. 1500x1500mm Aluminum Plate  base attached with plate heaters and whole supporting heavy-duty structure: 1nos

  2. Automatic Hydraulic Jack System with Control system.

  3. Process Control Panel synchronized by one master control: 1 no.

TECHNICAL DATA

  • Material to be processed: Recycled HDPE/PP/LDPE/PS/acrylic Grinded Scrap

  • Size to be manufactured: 1500 x 1500 mm Sheets

  • Output capacity: Depending upon the material used.

  • Recommended Mold size: 1550 x 1550 mm Top & bottom plates and frame.

  • Max. Sheet Output: 2 sheet per hour max.

  • Advanced Temperature control panel with power-saving technology.

  • Total Connected Load: 20* kW (Approx.)

MAIN SHEET PRESS

  • Supporting structure MS Powder coated.

  • 8-10 mm Top & bottom aluminum plates.

  • 25 Heating plates on each side mounted on aluminum plates to ensure equal distribution of heat.

  • 10-50 Ton standard Automatic Hydraulic Jack at the bottom of the pressing system with pressure gauge. Standard 4 rolling mechanism to ensure smooth up-down rolling of the bottom plate

AUTOMATIC HYDRAULIC SYSTEM:

  • 10-50 Ton double stroke jack

  • Pressure Gauge monitoring system

  • Hand lever operated mechanism

  • Directional control valve

  • 1 HP Motor

  • Overload switch protection for motor

  • Pressure Pump

  • Oil tank – 36 Liter

PROCESS CONTROL PANEL

  • Temp. Controllers: PID Controller with Autotuning & dual display (OMRON)

  • MCB: Reputed make MCB in line with every heating zone supply

  • Other Electrical Outfits: Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing.

  • Phase Synchronizer and Over Voltage Protection as per CE Standard.


    MACHINE COST

    Sheetpress - 1.5m x 1.5m (60 x60 inches)
    $8,000 - $10,000

    (Shipped and Installed)

    Sheet Mold

    $1,000 - $2,000

    (Fabricated Locally)`
